|Unventilated splayed uPVC upstand fixed direct to roof, with triple skin polycarbonate dome and tamper resistant fixings.||DWG|
|Hit and miss ventilated splayed uPVC upstand fixed direct to roof, with triple skin polycarbonate dome and tamper resistant fixings.||DWG|
|Unventilated splayed uPVC upstand fixed direct to roof, with manually operated wormgear lifting frame and triple skin polycarbonate dome and tamper resistant fixings.||DWG|

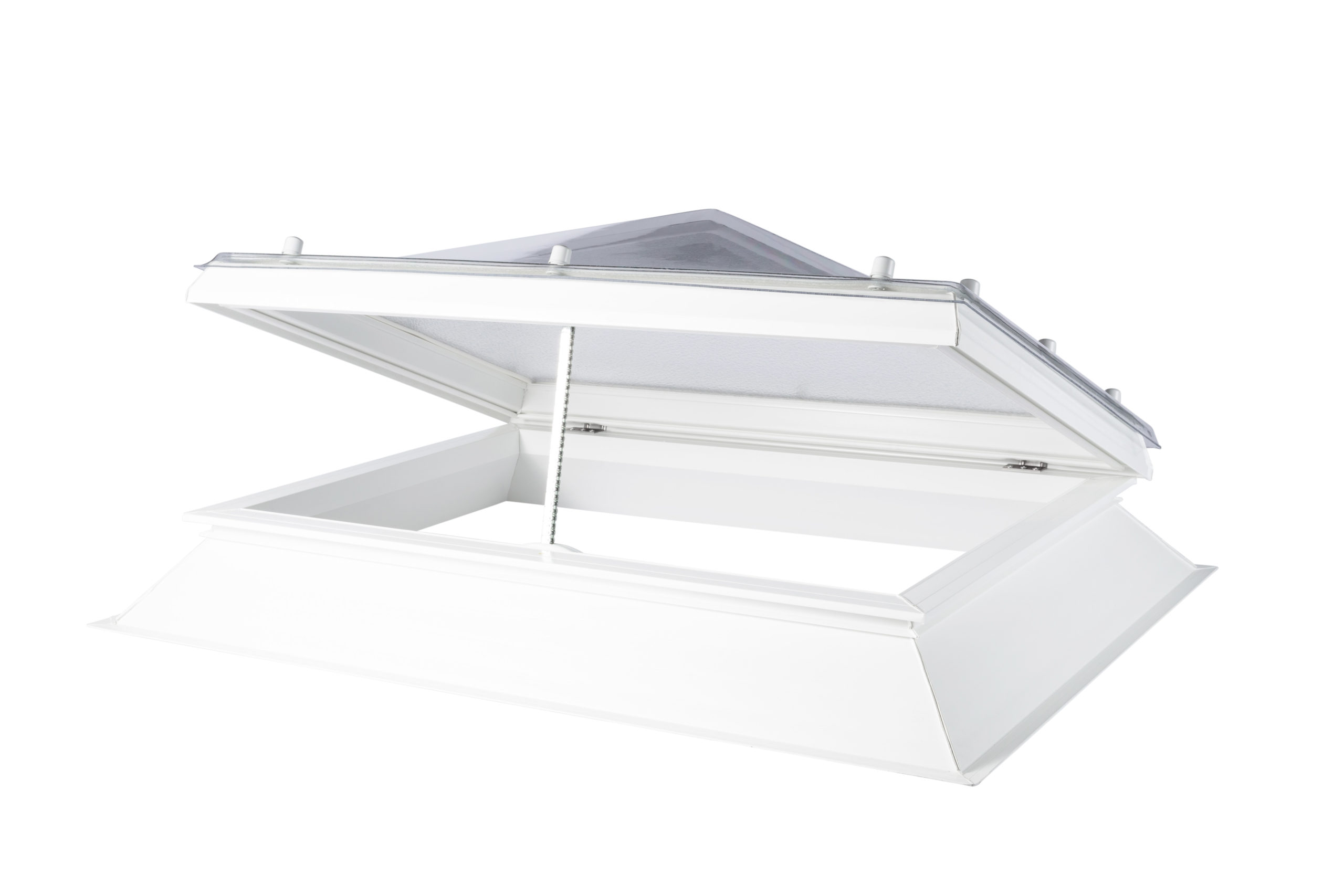

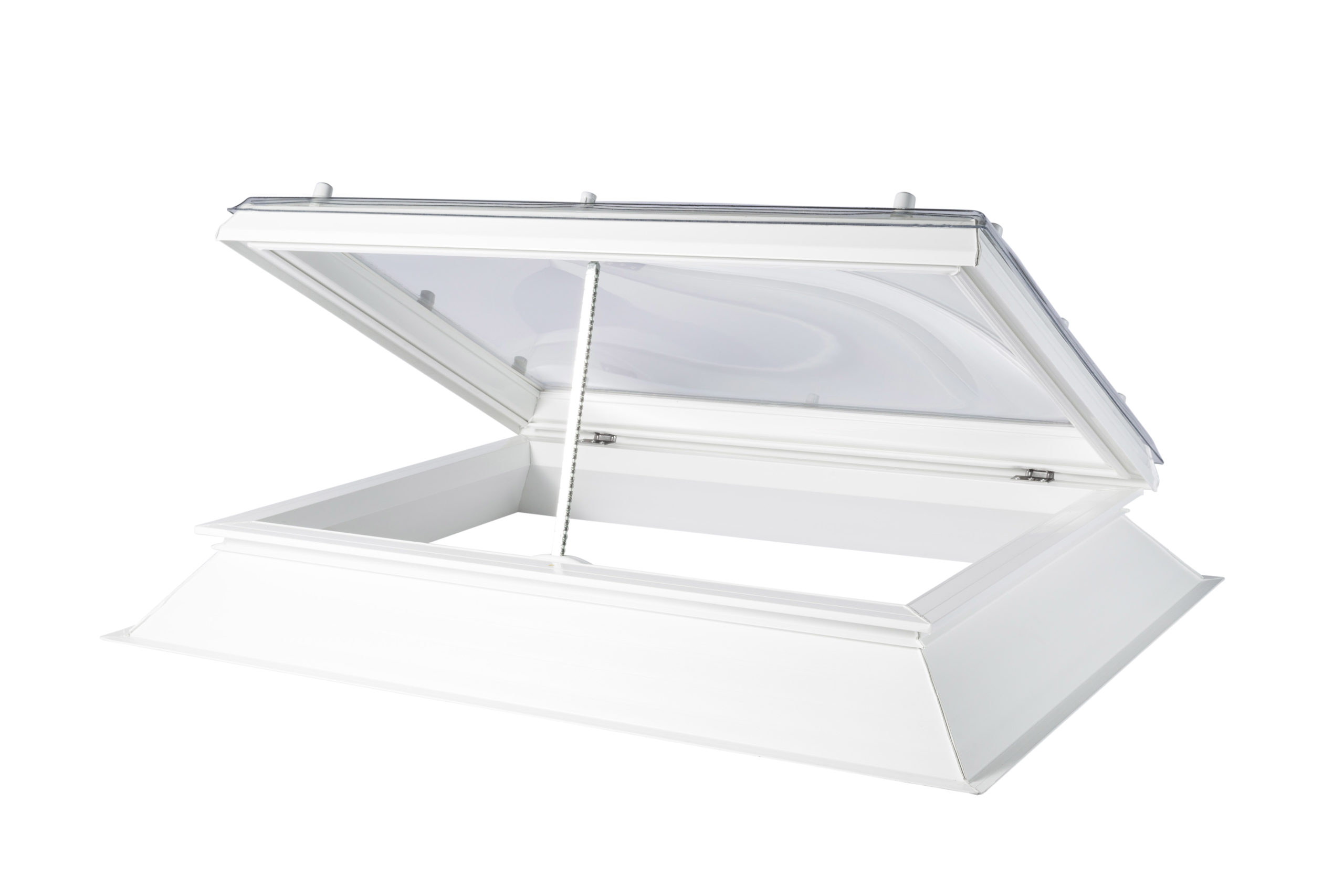

|Unventilated vertical uPVC upstand fixed direct to roof, with electronically operated chain driven lifting frame and triple skin polycarbonate dome with tamper resistant fixings.||DWG|

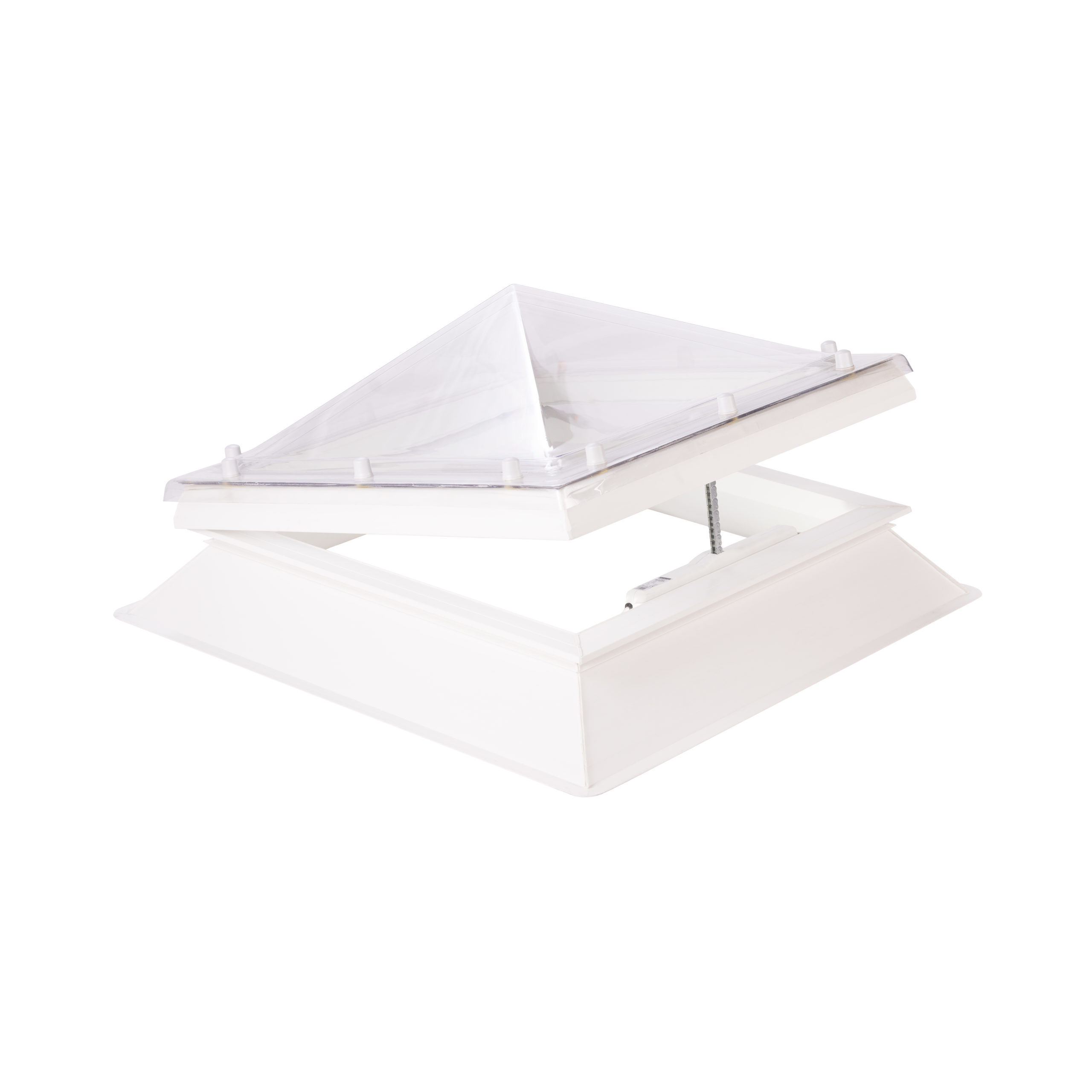

COXDOME Classic Range electric opening polycarbonate dome for flat roofs is manufactured to a high standard with double or triple glazing and a 150 mm PVC-u upstand. The thermally broken upstand is manufactured from PVC-u plastic profiles and ensures the thermal efficiency and prevents condensation.
COXDOME Classic Range rooflights are leading the way in terms of quality and price. The COXDOME Classic Range domes are available in clear, diffused or opal variants. Domes are available in a range of sizes between 600 mm and 3,000 mm. The electric chain drive motor is operated by a wall mounted switch providing an opening rooflight height of approximately 300mm.
COXDOME Classic Range polycarbonate domes for flat roofs features a universal design which provides easy installation as well as high performance. Designed with a modular structure allowing a variety of configurations. The thermally broken frame manufactured from plastic profiles ensures a strong thermal performance and resilience to condensation formation as well as having excellent waterproofing properties.
For product information, lead times and pricing of Vertical Upstands, please contact the customer service team.
- Double, triple or quadruple skins available for high performance
- Clear, diffused or opal glazing
- High Security Fixings as standard
- PVC-u Upstand
- Suitable for flat roofs, including single ply, GRP, hot melt, asphalt, liquid and lead

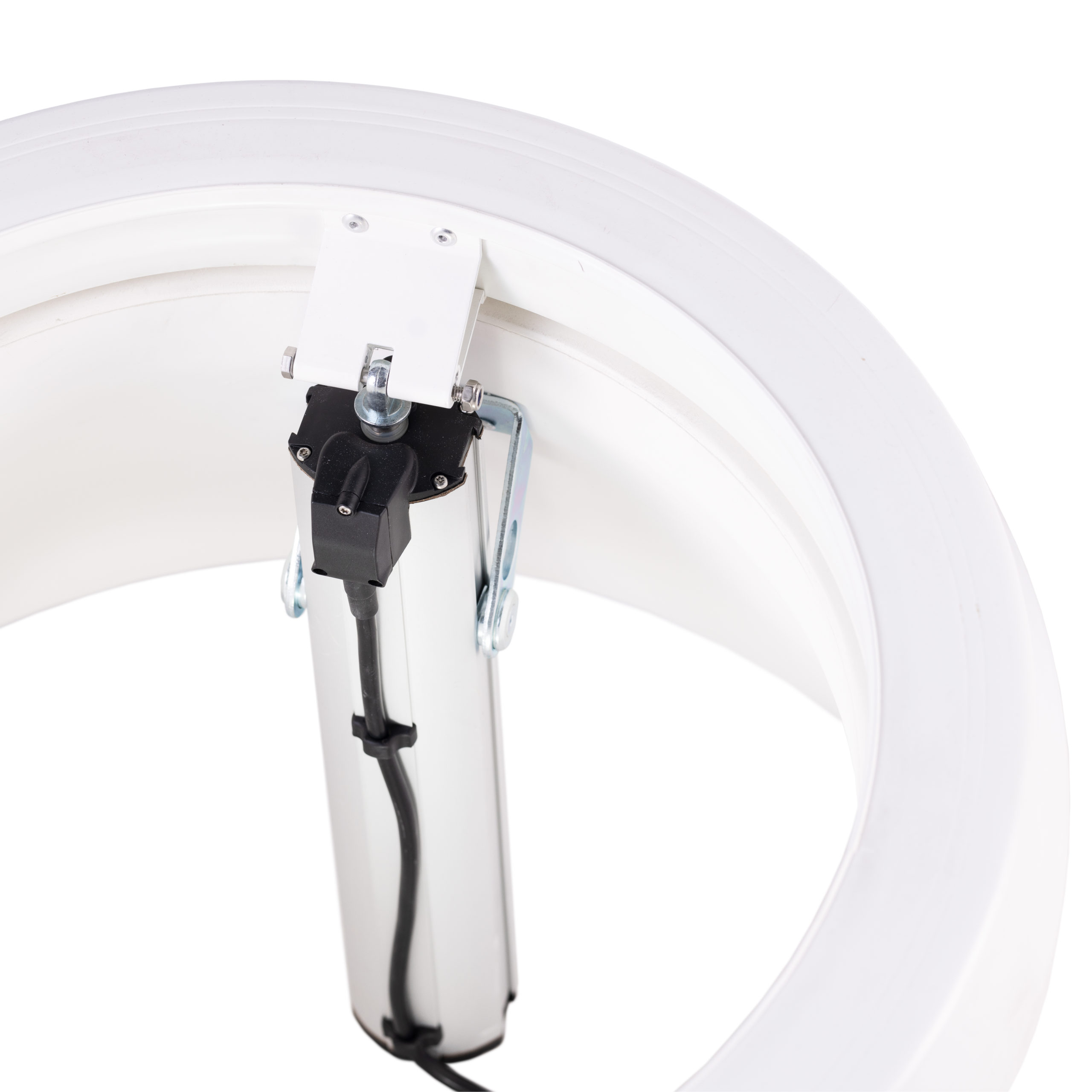

- Chain Drive with wall switch
- Remote opening
- U Value 2.7 Double Skin / Sound Reduction 20dB
- U Value 1.7 Triple Skin / Sound Reduction 22dB
- U Value 1.4 Quadruple Skin / Sound Reduction 23dB
- U Value 1.8 150mm PVC-u upstand
- CE Marking according to EN 1873
- Class B Non-Fragile, ACR(M)001 Soft Body Tested
- 3 mm polycarbonate impact resistant glazing
- B-s1-d0 Fire Classification according to BS EN15301:1 2007
